CYYZ27Y Barometric Pressure Transmitter Sensor range 70kPa-110kPa

Ask Lasest Price
Brand Name :	Star merter
Model Number :	CYYZ27Y
Price :	Negotiation
Payment Terms :	T/T
Supply Ability :	30000 Piece/Month

Add to Cart

Product Details
Company Profile

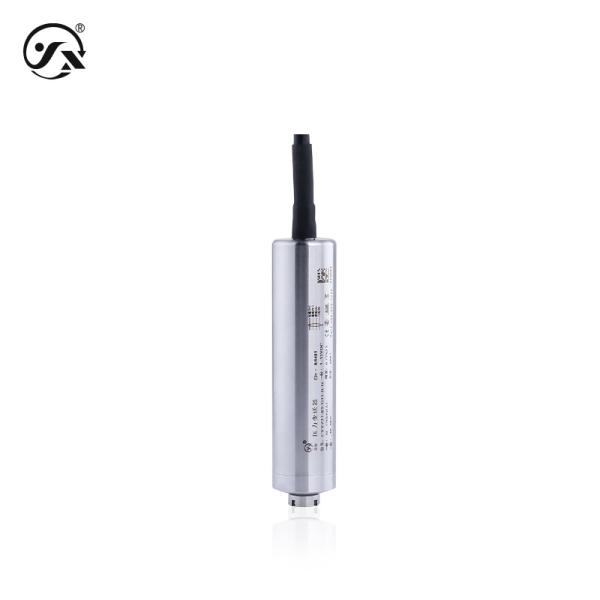

CYYZ27Y Barometric Pressure Transmitter Sensor range 70kPa-110kPa

CYYZ27Y Barometric Pressure Transmitter Pressure Range 70~110kPa(A) Temperature Range Water Level Measurement -40~60°C

CYYZ27Y barometric pressure transmitter, the overall stainless steel housing design is durable, mainly for atmospheric pressure compensation, and with temperature output. Pressure is available in two precisions, high precision and conventional.

Base parameters
Measuring medium	gas
Range range	70～110kPa(A)
Temperature range	-40～60℃
Type of pressure	Absolute pressure
On-time	400ms
Pressure accuracy	±0.05kPa, ±0.25kPa (reference temperature 25°C)
Temperature accuracy	±2℃
Response frequency	5Hz
Stable performance	± 0.1% FS/year
Temperature compensation	-10～70℃
Temperature drift	±0.01%FS/°C (temperature compensation range); ±0.05%FS/°C (outside temperature compensation range)
Degree of protection	IP67
Overall weight	≈110g
Output power
Output signal	RS485
Supply voltage	5～32VDC
Environmental conditions
Ambient temperature	-40～85℃
Overall material
enclosure	304 stainless steel (contact with the medium to be measured)
Seals	Nitrile rubber (contact with the medium to be measured)
Cable	φ5 polyurethane shielded cable (contact with the measured medium)
Mechanical stability
Seismic performance	10g(20… 2000Hz) conforms to IEC60068-2-6 standard
Impact resistance	500g/ms conforms to IEC60068-2-27 standard
Electrical protection
Short-circuit protection	perpetual
Anti-polarity protection	No damage, but not working
Insulation resistance	≥100MΩ,500VDC
Dielectric strength	500VAC
Output limits
RS485	Minimum output: pressure 3000/temperature 0, maximum output: pressure 15000/temperature 1000

Manual
Product Information -Chinese (CN)	PDF
Product Information -English (EN)	PDF
Product selection -Chinese (CN)	PDF
Product selection -English (EN)	PDF
Installation instructions -Chinese (CN)	PDF
Installation instructions -English (EN)	PDF
Protocol -Chinese (CN)	PDF
Protocol -English (EN)	PDF
