CWDZ19Y Outdoor Temperature Transmitter Weather Monitoring 0.5%FS For Temperature Measurement

Ask Lasest Price
Brand Name :	Star merter
Model Number :	CWS19Y
Price :	Negotiation
Payment Terms :	T/T
Supply Ability :	30000 Piece/Month

Add to Cart

Product Details
Company Profile

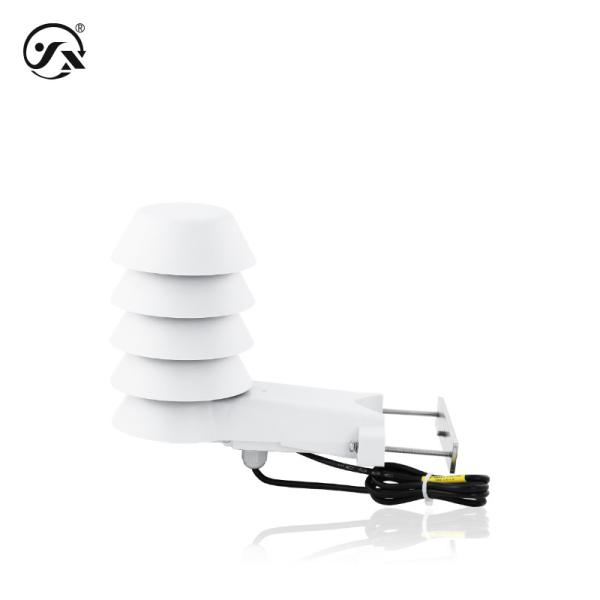

CWDZ19Y Outdoor Temperature Transmitter Weather Monitoring 0.5%FS For Temperature Measurement

CWDZ19Y Outdoor Temperature Transmitter Weather Monitoring Suitable For Temperature Measurement In A Variety Of Outdoor

CWDZ19Y outdoor temperature transmitter is carefully designed, excellent quality, suitable for all kinds of outdoor temperature monitoring, digital signal and analog signal two outputs are optional, wide power supply range, strong weather resistance and other advantages.

Base parameters
Measuring medium	gas
Output signal	4~20mA,RS485
Power supply range	12～36VDC
Measuring range	-50～100℃
Measuring cell	1*Pt100(1/3B grade)
Response time	18s (according to IEC60751, 0.4m/s wind speed, 10°C step)
Stable performance	± 0.1% FS/year
On-time	400ms
Degree of protection	IP65
Overall weight	≈650g
Accuracy class	0.5%FS
Maximum power
4~20mA	≤0.02Us(W)
RS485	≤0.015Us(W)
Load characteristics
Current type	Load ≤ {(Us-7.5)÷0.02}Ω(Us=Supply voltage)
Environmental conditions
Ambient temperature	-40～85℃
Ambient humidity	0%~95%RH(no condensation, no condensation)
Electrical protection
Short-circuit protection	perpetual
Anti-polarity protection	No damage, but not working
Insulation resistance	≥100MΩ,500VDC
Dielectric strength	500VAC
Output limits
4-20mA	Output min. 4mA and output max 20mA
RS485	Output minimum 0, output maximum 1500
Overall material
Body housing	ABA comes into contact with the medium under test
Cable locking head	Nylon (lock wire diameter 4~6mm) contact with the measured medium
Seals	Nitrile rubber comes into contact with the medium to be measured
Mounting parts	304 stainless steel
Mechanical stability
Seismic performance	5g(20… 2000Hz) in accordance with IEC60068-2-6 standard
Impact resistance	500g/1ms conforms to IEC60068-2-27 standard

Manual
Product Information -Chinese (CN)	PDF
Product Information -English (EN)	PDF
Product selection -Chinese (CN)	PDF
Product selection -English (EN)	PDF
Installation instructions -Chinese (CN)	PDF
Installation instructions -English (EN)	PDF
Protocol -Chinese (CN)	PDF
Protocol -English (EN)	PDF
