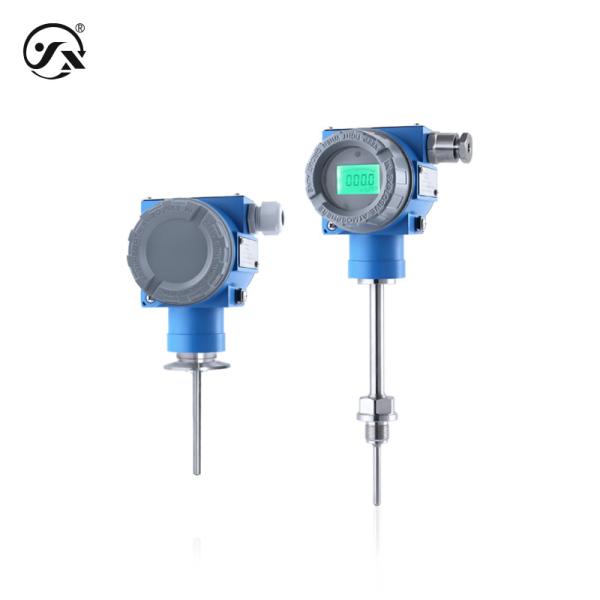

CWDZ15CY Universal Temperature Transmitter -50~300°C For Various Industrial Fields

CWDZ15CY Universal Temperature Transmitter Measuring Range -50~300°C Widely Used In Various Industrial Fields

CWDZ15CY general-purpose temperature transmitters are well-designed and ideally suited for general purpose industries. It has a variety of explosion-proof function options, intrinsically safe, dust intrinsically safe, flameproof, explosion-proof dust, and can also choose HART protocol communication, cost-effective.

Basic parameters
Measuring medium	Liquids or gases, etc. (compatible with contact materials)
Measuring range	-50~300°C (see range parameter selection table for details)
Response time	Protection tube φ6mm≈18s, casing φ10mm≈36s (in line with IEC60751, 0.4m/s water flow, 10°C step)
Measuring cell	1*Pt100 (1/3B grade)
Stable performance	±0.1% FS/year
Explosion-proof type	Flameproof Ex d II. C T6 Gb Intrinsically safe Ex ia II.C T6 Ga (current output only) Dust intrinsically safe Ex ia IIIC T85°CDa (current output only) Note: Intrinsically safe must be powered by a safety barrier or intrinsically safe power supply Switching time: 400ms
Ingress protection	IP66 Note: The above protection level refers to the level achieved when the electrical connection is complete
Accuracy class	0.25%FS, 0.5%FS Meter Accuracy 0.5%FS (LCD with backlight)
Resolution	Analog output 0.02%FS, digital output 0.1°C
Output power
Output signal	4~20mA,RS485,4~20mA HEART
Supply voltage	9~32VDC,13~32VDC,15~32VDC,15~24VDC
Maximum power
4~20mA Yes/No Display RS485 Yes Display 4~20mA HART Yes/No Display	≤0.02Us(W)
RS485 is not displayed	≤0.015Us(W)
Load characteristics
Voltage type	≥10kΩ
Current type	No display load ≤{(Us-7.5)÷0.02}Ω With display load ≤{(Us-12)÷0.02}Ω (Us=supply voltage)
HART current type	Load ≤{(Us-12)÷0.02}Ω (Us=Supply Voltage)
Environmental conditions
Ambient temperature	-40～85℃
Ambient humidity	0%~95%RH (no condensation, no condensation)
Electrical protection
Short-circuit protection	perpetual
Reverse polarity protection	No damage, but no work
Insulation resistance	≥100MΩ,500VDC
Dielectric strength	500VAC
Output limits
4-20mA	The output is 2.5mA min. 26mA max
RS485	Output minimum: 0, output max. 3500/7000
4-20mA HART	The output is 3.8mA and the output is 22mA
Overall material
Protective tube material	304 stainless steel (in contact with the medium to be measured)
Process connections	304 stainless steel (in contact with the medium to be measured)
enclosure	Die-cast aluminum
Display window	≈6mm explosion-proof glass
Mechanical stability
Seismic performance	10g(20… 2000Hz) in accordance with the IEC60068-2-6 standard
Impact resistance	500g/ms meets IEC60068-2-27 standard
