CWDZ22Y Split Temperature Transmitter 4-20ma for General Industry

Ask Lasest Price
Brand Name :	Star merter
Model Number :	CWDZ22Y
Price :	Negotiation
Payment Terms :	T/T
Supply Ability :	30000 Piece/Month

Add to Cart

Product Details
Company Profile

CWDZ22Y Split Temperature Transmitter 4-20ma for General Industry

CWDZ22Y Split Temperature Transmitter Measuring Range -50～100℃,-50～260℃ Accuracy Class 0.25%FS,0.5%FS General Industry

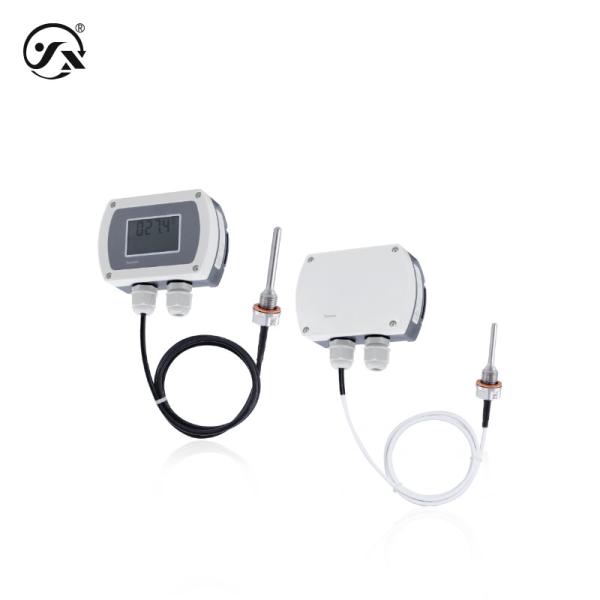

The CWDZ22Y split temperature transmitter is designed to measure the temperature of gases, liquids and solids. Available with and without display.

Base parameters
Measuring medium	Solid, liquid or gas (compatible with contact material)
Measuring range	-50～100℃,-50～260℃
Output signal	4~20mA,RS485,Pt100,0~10VDC,0~5VDC,1~5VDC
Measuring cell	1*Pt100 (Class 1/3B)
Response time	18s (according to IEC60751, 0.4m/s wind speed, 10°C step)
Stable performance	± 0.1% FS/year
On-time	400ms
Degree of protection	Housing IP65 Probe IP68 Note: The degree of protection is achieved after the electrical connection is complete
Durable performance	1X10⁶ times (lower range to upper range number of cycles)
Overall weight	With display≈ 150g No display≈ 130g Probe G1/4 male thread≈ 36g (insertion depth is 30mm) Probe G1/2, M20*1.5 male thread≈ 78g (insertion depth is 30mm) Note: For every 10mm increase in insertion depth, the weight increases by 1g
Accuracy class	0.25%FS,0.5%FS
resolution	Analog output 0.02%FS, digital output 0.1°C
Output power
4~20mA	9～28VDC
RS485	9～28VDC
0～10VDC	12～28VDC
0～5VDC	9～28VDC
1～5VDC	9～28VDC
Maximum power
4~20mA	≤0.02Us(W)
RS485	≤0.015Us(W)
0～10VDC	≤0.015Us(W)
0～5VDC	≤0.015Us(W)
1～5VDC	≤0.015Us(W)
Load characteristics
Voltage type	≥10kΩ
Current type	Load ≤{(Us-7.5)÷0.02}Ω (US=Supply voltage)
Environmental conditions
Ambient temperature	-40～85℃
Ambient humidity	0%~95%RH(no condensation, no condensation)
Overall material
enclosure	ABS engineering plastics
Cable locking	Nylon (lock wire diameter 4~6mm)
Display	LCD LCD display without backlight
Probe material	304 stainless steel
Seals	nitrile rubber
Cable	PTFE shielded compensation cable (φ3.2mm) temperature resistance -50~260 °C polyurethane shielded compensation cable (4.7mm) temperature resistance -50~100 °C
Mechanical stability
Seismic performance	10g(20… 2000Hz) conforms to IEC60068-2-6 standard
Impact resistance	500g/ms conforms to IEC60068-2-27 standard
Electrical protection
Short-circuit protection	perpetual
Anti-polarity protection	No damage, but not working
Insulation resistance	≥100MΩ,500VDC
Dielectric strength	500VAC
Output limits
4-20mA	Output min. 4mA and output max 20mA
RS485	Output minimum 0, output maximum 1500
0～10VDC	Output minimum 0.001VDC, output maximum 10VDC
0～5VDC	Output minimum 0.001VDC, output maximum 5VDC
1～5VDC	Output minimum 0.001VDC, output maximum 5VDC

Manual
Product Information -Chinese (CN)	PDF
Product Information -English (EN)	PDF
Product selection -Chinese (CN)	PDF
Product selection -English (EN)	PDF
Installation instructions -Chinese (CN)	PDF
Installation instructions -English (EN)	PDF
Protocol -Chinese (CN)	PDF
Protocol -English (EN)	PDF
