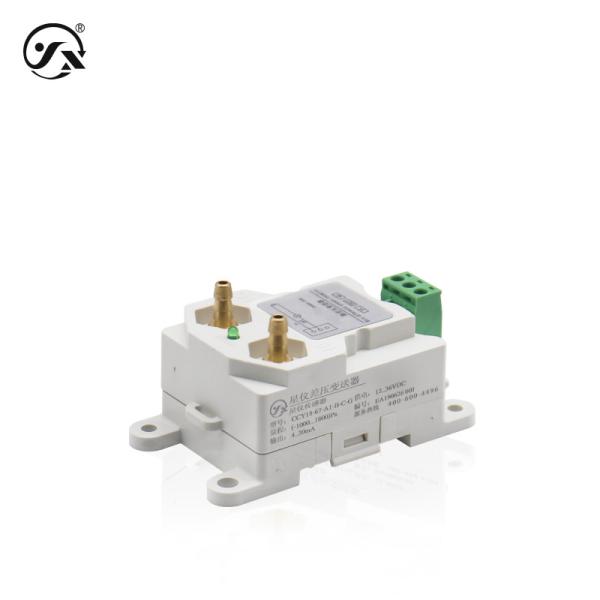

CCY18Y HVAC Differential Pressure Transmitter IP50 Medical Equipment Industrial Control

CCY18Y Differential Pressure Transmitter Medical Equipment HVAC Industrial Control

CCY18Y series differential pressure transmitter adopts piezoresistive pressure sensor chip, using the thin film resistance on the substrate for zero point correction, zero point temperature compensation and sensitivity compensation, and high-performance and stable silicon chip packaging, so that its static pressure resistance value is high, anti-interference, stable and reliable. Therefore, the product can be used in various differential pressure applications for gas measurement. It is an ideal differential pressure measuring instrument in the field of industrial automation.

Base parameters
Measuring medium	Gas (compatible with contact material)
Measuring range	±0.1～±10kPa
Pressure mode	Differential pressure
Temperature compensation	-10～60℃
Accuracy class	0.5%FS or 0.25%FS (range≥1kPa); 1%FS or 0.5%FS (range<1kPa)
Response frequency	≤5Hz
Stable performance	±0.3%FS/year (range≥1kPa); ±0.5%FS/year (range< 1kPa)
Temperature drift	±0.03%FS/°C (temperature compensation range)
Overall weight	≈60g
Degree of protection	IP50
Output power
Output signal	4~20mA
Power supply range	12～36VDC
Power range
Current type	Current type≤ 0.02Us(W) Note: Us = supply voltage
Load characteristics
Voltage type
Current type	≤{(Us-7.5)÷0.02(Us=Supply voltage)}Ω
working conditions
Media temperature	-40～100℃
Ambient temperature	-40～85℃
Overall material
diaphragm	Silicon chip (contact)
Φ6 Pagoda mouth	Copper (contact)
enclosure	PVC engineering plastics
Pressure tube	Silicone hose (contact)
Mechanical stability
Seismic performance	10g(20… 2000Hz)

Manual
Product Information -Chinese (CN)	PDF
Product Information -English (EN)	PDF
