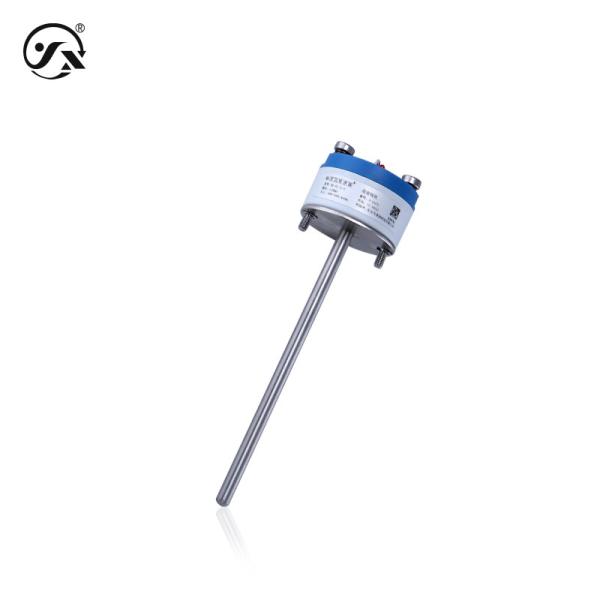

CWDZ05MY Armored Temperature Transmitter Range: -50~300°C,-200~300°C,-50~500°C Output: 4~20mA, RS485, Pt100

CWDZ05MY armoured temperature transmitter core is suitable for armored temperature transmitters that meet this size.

Base parameters
Measuring range	-50～300℃,-200～300℃, -50～500℃
Output signal	4~20mA,RS485
Supply voltage	12～36VDC
Measuring cell	1*Pt100 (Class 1/3B)
Stable performance	± 0.1% FS/year
On-time	400ms
Overall weight	≈400g
Accuracy class	0.25%FS,0.5%FS
Resolution	Analog output 0.02%FS, digital output 0.1°C
Maximum power
4~20mA	≤0.02Us(W)
RS485	≤0.015Us(W)
Load characteristics
Current type	Load ≤{(Us-9)/0.02(Us=Supply voltage)}Ω
Environmental conditions
Ambient temperature	-40～85℃
Ambient humidity	0%~95%RH(no condensation, no condensation)
Electrical protection
Short-circuit protection	perpetual
Anti-polarity protection	No damage, but not working
Insulation resistance	≥100MΩ,500VDC
Dielectric strength	500VAC
Overall material
enclosure	ABS engineering plastics
Protective pipe material	304 stainless steel (contact with the medium to be measured)
Mechanical stability
Seismic performance	10g(20… 2000Hz) in accordance with IEC60068-2-6 standard
Impact resistance	500g/ms complies with IEC60068-2-27 standard
Output limits
4-20mA	Output min. 2.5mA, output max 26mA
RS485	Output minimum 0, output maximum 3500/7000
